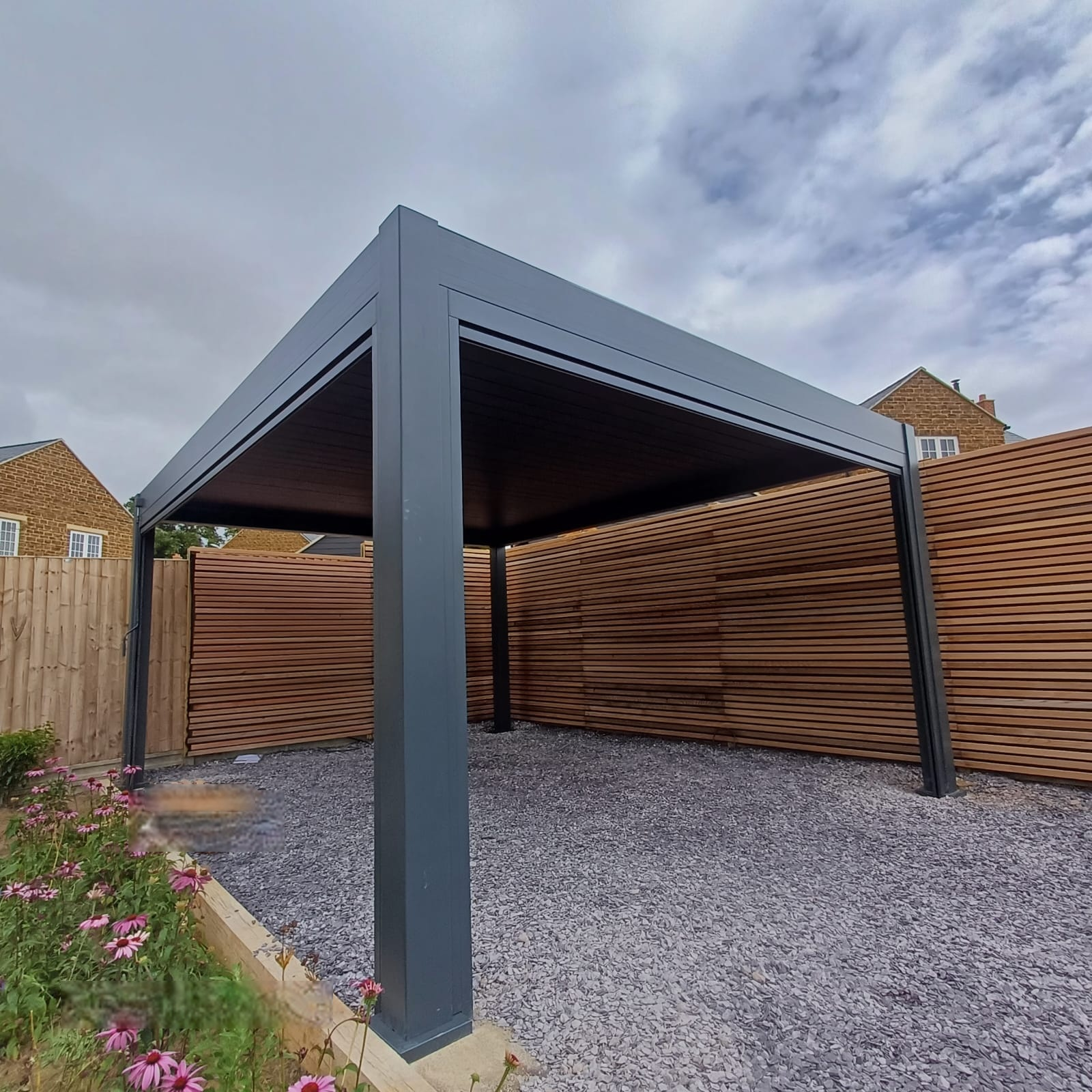

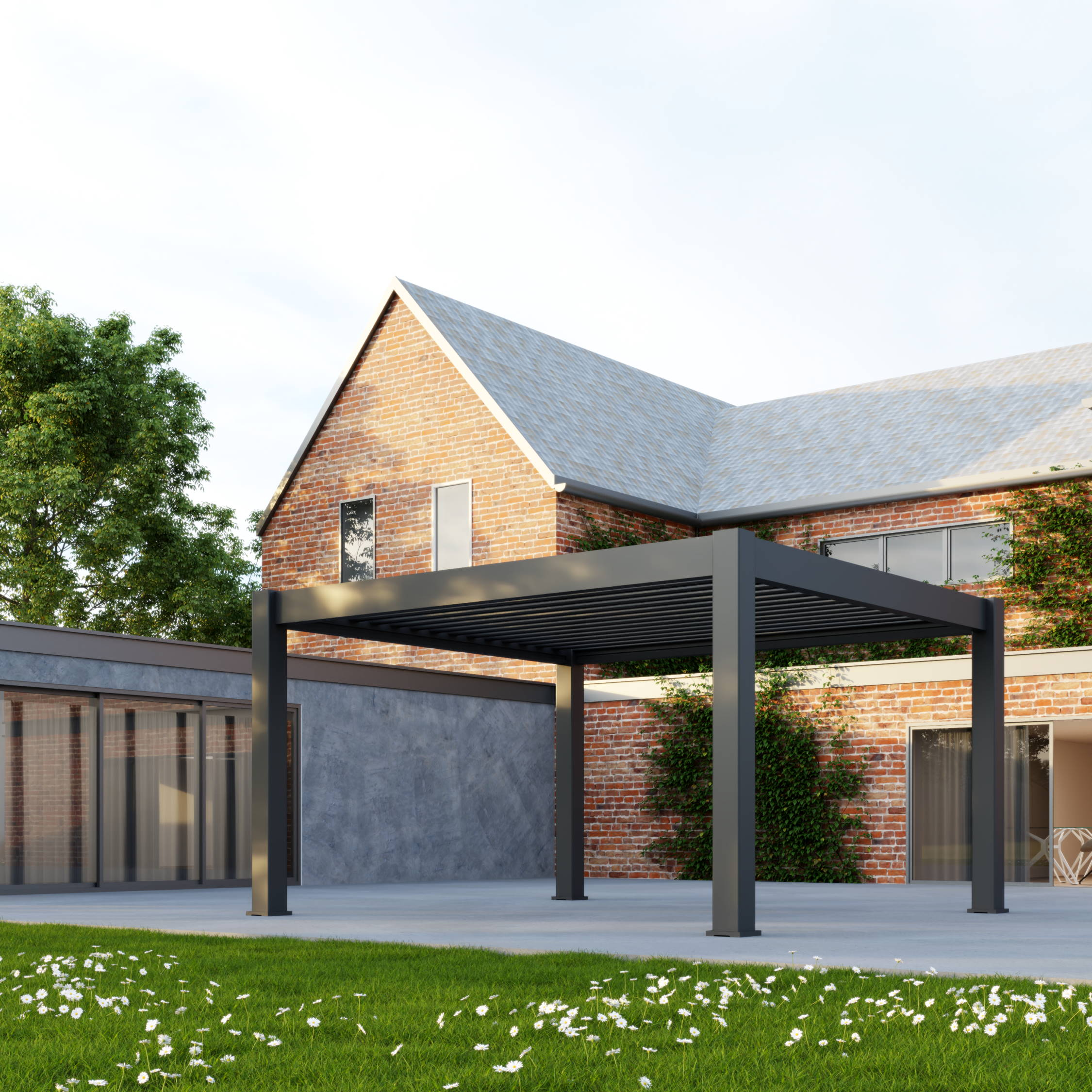

The Thor Deluxe 4m x 4m Aluminium Pergola, exclusive to Crownhill, is a heavy-duty, premium shelter engineered for maximum strength and a seamless aesthetic. This upgraded model features extra-thick 12.5cm legs and a reinforced aluminium gauge throughout, supporting a full 4m span without the need for a split roof. Extra-depth horizontal beams completely conceal the double-layer louvres when open, while the 90-degree tilting function provides precise control over sun and rain. With an advanced integrated drainage system and a 10-year limited structural warranty, the Thor Deluxe offers an exceptionally durable, high-end solution for year-round outdoor living.
✔ Premium bioclimatic aluminium pergola with adjustable double-layer louvred roof
✔ Extra-thick 12.5cm aluminium legs for superior load-bearing strength
✔ Strengthened throughout with extra thick gauge aluminium
✔ Extra-strength roof louvres engineered for 4m span without split roof
✔ Extra-depth horizontal beams to fully conceal louvres when open
✔ Fully waterproof roof with integrated hidden drainage system
✔ UV-resistant powder-coated Dark Grey finish
✔ OEM / private label & project customization supported
The Modern Aluminum Metal Pergola – 13.1′ Square Dark Grey is specifically developed for hotels, resorts, rooftop venues, restaurants, and premium hospitality environments where structural strength, architectural presence, and all-weather usability are essential.
Hotels & Resorts
Rooftop Bars & Restaurants
Outdoor Dining & Lounge Areas
Commercial Courtyards & Terraces
Real Estate Showrooms & Model Villas
Property Development Projects
Hospitality Furniture Importers & Wholesalers
Deluxe Commercial-Grade Aluminium Construction
This pergola features a reinforced aluminium frame system combined with a heavy-duty bioclimatic louvred roof, designed for large-span coverage and long-term commercial performance.
Extra-thick aluminium legs (12.5cm profile)
Heavy-gauge aluminium structure throughout
Powder-coated Dark Grey finish
UV-resistant and weather-protected coating
Extra-depth horizontal beams to hide louvres when open
High structural rigidity for commercial applications
Heavy-duty base plates with bolt-down fixing system
Heavy-Duty Bioclimatic Louvred Roof
The roof system is engineered to deliver full environmental control without compromising structural integrity.
Extra-strength aluminium louvres
Tilting double-layer louvre design
Manual operation for smooth adjustment
Over 90-degree rotation to track sun movement
Fully waterproof when closed correctly
Designed to span 4m without split roof sections
Advanced Hidden Water Management
A sophisticated internal drainage system ensures rainwater is managed discreetly and efficiently.
Rainwater collected via U-shaped louvre channels
Water directed into internal roof framework
Flows through horizontal beams into hollow pergola legs
Discharges vertically at ground level
Prevents dripping when opening wet louvres
This design guarantees clean runoff and dry sheltered areas.
Designed for Year-Round Commercial Use
Extends outdoor usability in all weather conditions
Protects guests, furniture, and flooring
Maintains clean architectural lines with concealed drainage
Ideal for high-traffic hospitality environments
Enhance Functionality & Comfort
Compatible with a range of optional accessories to tailor the pergola to project requirements:
Pull-down privacy screens
Aluminium louvred side walls
Glass sliding door systems
Accessory configurations available for large-scale projects.
Professional Installation Ready
Requires 2–3 people for safe assembly
Estimated installation time: 3–4 hours
Expansion bolts supplied as standard
Must be installed on flat, solid surfaces (concrete or patio)
All pergola legs must be securely bolted through base plates
Reliable Manufacturing for Bulk & Project Orders
Wellfurnir® operates as a professional aluminium pergola manufacturer with scalable production capacity.
We support:
Container-based bulk shipments
Project-based mass production
Mixed model loading
Custom packaging solutions
Export documentation support
Standard production lead time: 30–45 days
Flexible scheduling available for large hospitality projects
| Specification | Details |
|---|---|
| Frame Material | Extra-Gauge Aluminium |
| Finish | Powder-Coated Dark Grey |
| Size | 13.1 ft x 13.1 ft (4 m x 4 m) |
| Roof Type | Bioclimatic Double-Layer Louvred System |
| Operation | Manual Adjustment |
| Drainage System | Integrated Hidden Channels |
| Waterproof | Yes (when roof is closed) |
| Application | Hospitality / Commercial Projects |
| MOQ | 5 Sets |
| Production Lead Time | 30–45 Days |
| Warranty | 10-Year Limited Structural Warranty |
OEM & Project-Based Solutions Available
For wholesalers, contractors, and developers, we offer:
Custom frame colours
Size & dimension modifications
Private label branding
Logo printing or marking
Custom packaging solutions
Engineering drawings & technical support
We welcome long-term distribution partnerships.
Professional Outdoor Structure Supply Partner
Direct factory manufacturing
Competitive wholesale pricing
Strong export experience
Strict quality control systems
Engineering-driven product design
Dedicated project coordination support
We focus on long-term B2B partnerships.
Q: Is this pergola suitable for heavy commercial use?
Yes. It is engineered specifically for high-frequency hospitality and commercial environments.
Q: Can the roof span 4m without support?
Yes. The reinforced louvre and beam design allows a full 4m span without split roof sections.
Q: Is the roof fully waterproof?
Yes. When closed correctly, the pergola provides complete rain protection.
Q: Can this pergola be customized for large projects?
Yes. OEM and project-based customization is fully supported.
Contact our project team to receive a wholesale quotation, container loading plan, and full product catalogue.
Email: lisa@Wellfurnir.com
Call: +86 139 8986 6914
The Thor Deluxe 4m x 4m Aluminium Pergola, exclusive to Crownhill, is a heavy-duty, premium shelter engineered for maximum strength and a seamless aesthetic. This upgraded model features extra-thick 12.5cm legs and a reinforced aluminium gauge throughout, supporting a full 4m span without the need for a split roof. Extra-depth horizontal beams completely conceal the double-layer louvres when open, while the 90-degree tilting function provides precise control over sun and rain. With an advanced integrated drainage system and a 10-year limited structural warranty, the Thor Deluxe offers an exceptionally durable, high-end solution for year-round outdoor living.
Contact us for pricing, lead times, and to discuss your specific requirements.
