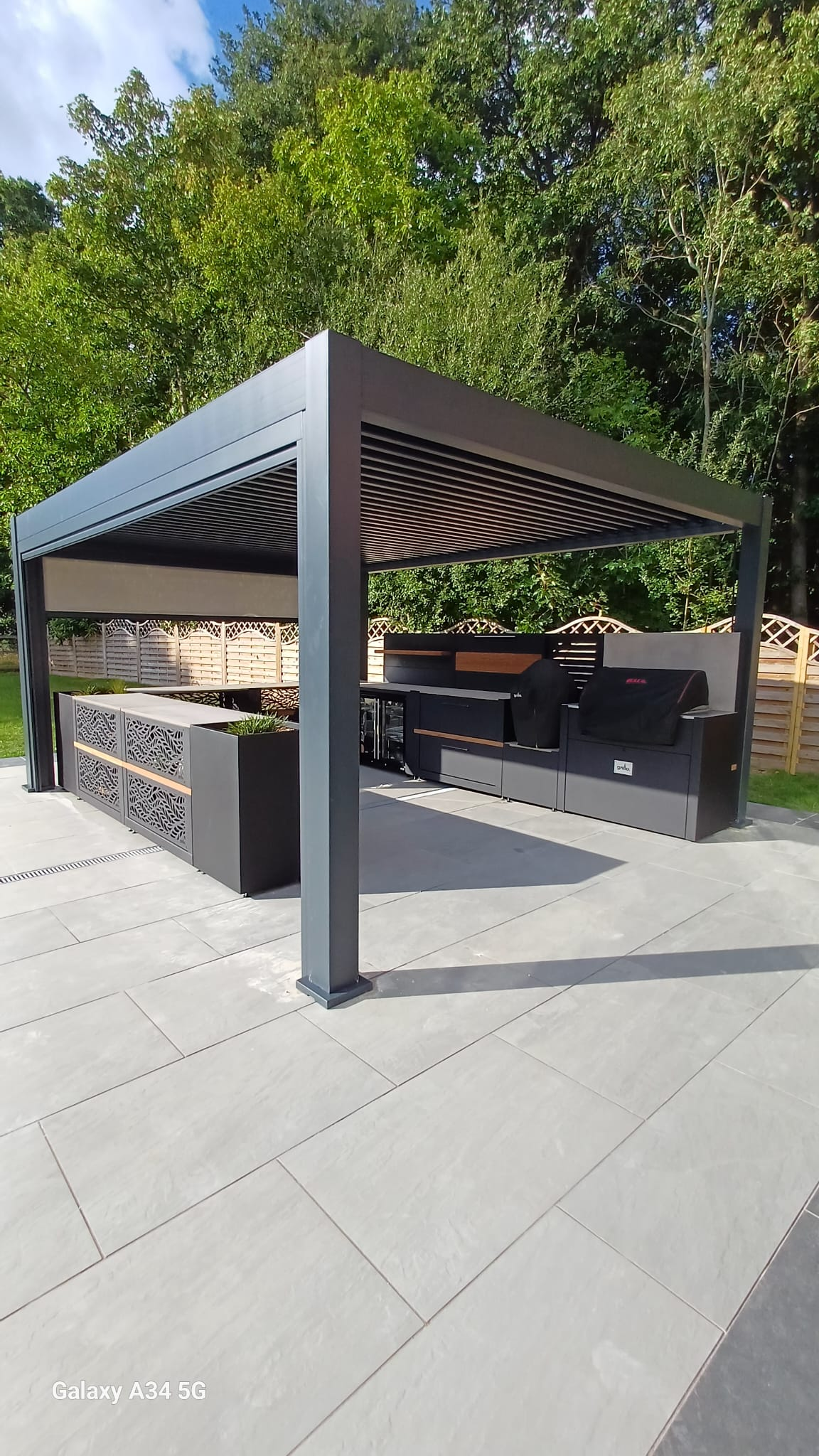

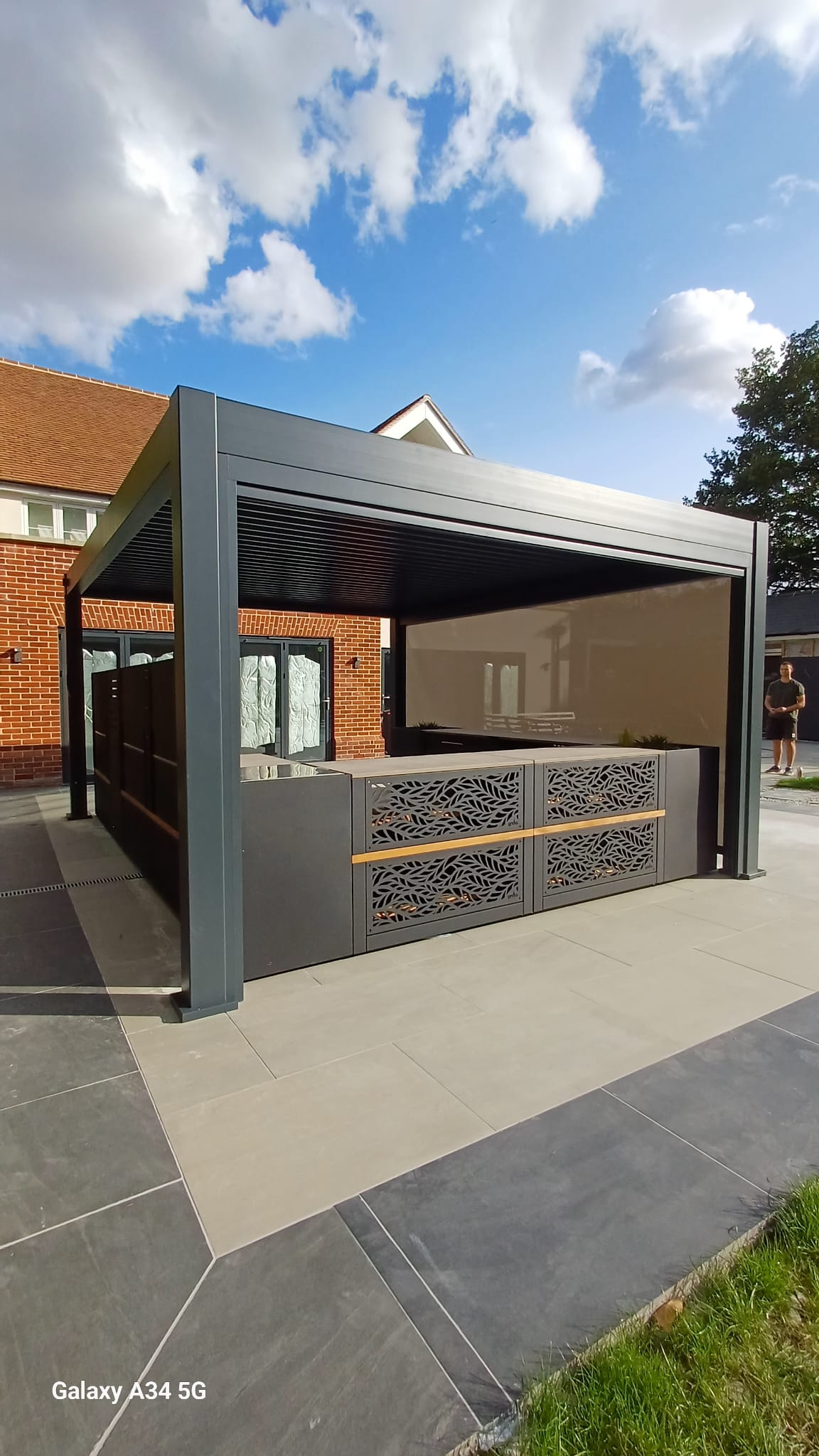

The Thor Deluxe 5m x 4m Aluminium Pergola, exclusive to Crownhill, is an engineering marvel that spans a full 5-metre width using only four legs for a wide, unobstructed view. This ultra-heavy-duty model features massive 15cm extra-thick legs and a reinforced, thick-gauge aluminium frame. Its extra-strength roof louvres maintain a seamless 4m span without a split roof, while extra-depth beams completely conceal the double-layer louvres when open. Featuring a 90-degree tilt function, 100% waterproof design, and a sophisticated integrated drainage system, this pergola offers unmatched durability and a 10-year limited structural warranty.
✔ Deluxe bioclimatic aluminium pergola with adjustable double-layer louvred roof
✔ Large 5-metre width supported by just 4 structural legs
✔ Extra-thick 15cm aluminium legs for superior load-bearing capacity
✔ Strengthened throughout with extra thick gauge aluminium
✔ Extra-strength roof louvres engineered for 4m span without split roof
✔ Extra-depth horizontal beams to fully conceal louvres when open
✔ Fully waterproof roof with integrated hidden drainage system
✔ UV-resistant powder-coated Dark Grey finish
✔ OEM / private label & project customization supported
The Modern Aluminum Metal Pergola – 16.4′ x 13.1′ Dark Grey Bioclimatic is designed for hotels, resorts, rooftop venues, restaurants, commercial terraces, and large hospitality spaces where wide-span coverage, structural strength, and architectural impact are essential.
Hotels & Resorts
Rooftop Bars & Restaurants
Outdoor Dining & Lounge Areas
Commercial Courtyards & Terraces
Real Estate Showrooms & Model Villas
Property Development Projects
Hospitality Furniture Importers & Wholesalers
Deluxe Commercial-Grade Aluminium Construction
This pergola features a reinforced aluminium structural system engineered to deliver a 5-metre clear span using only four legs, ensuring maximum open space and clean architectural lines.
Extra-thick aluminium legs (15cm profile)
Heavy-gauge aluminium structure throughout
Powder-coated Dark Grey finish
UV-resistant and weather-protected coating
Extra-depth horizontal beams to hide louvres when open
High structural rigidity for large commercial spans
Heavy-duty base plates with bolt-down fixing system
Heavy-Duty Bioclimatic Louvred Roof
The roof system is engineered for wide-span applications without compromising performance or durability.
Extra-strength aluminium roof louvres
Tilting double-layer louvre design
Manual operation for smooth, precise adjustment
Over 90-degree rotation to follow sun movement
Fully waterproof when closed correctly
Designed to span 4m without split roof sections
Advanced Hidden Water Management
A sophisticated internal drainage system ensures clean, controlled rainwater flow without visible runoff.
Rainwater collected via U-shaped louvre channels
Water directed into internal roof framework
Flows through horizontal beams into hollow pergola legs
Discharges vertically at ground level
Prevents dripping when opening wet louvres
This system maintains a dry, usable space even during sudden rainfall.
Designed for High-Traffic Commercial Environments
Enables year-round outdoor usage
Protects guests, furniture, and flooring
Maintains clean architectural aesthetics
Ideal for hospitality and large-scale commercial projects
Enhance Comfort & Functionality
Compatible with a wide range of optional accessories to tailor the pergola to project requirements:
Pull-down privacy screens
Aluminium louvred side walls
Glass sliding door systems
Accessory integration available for project-specific configurations.
Professional Installation Recommended
Requires 2–3 people for safe assembly
Estimated installation time: 3–4 hours
Expansion bolts supplied as standard
Must be installed on flat, solid surfaces (concrete or patio)
All pergola legs must be securely bolted through base plates
Reliable Manufacturing for Bulk & Project Orders
Wellfurnir® operates as a professional aluminium pergola manufacturer with scalable production capacity.
We support:
Container-based bulk shipments
Project-based mass production
Mixed model loading
Custom packaging solutions
Export documentation support
Standard production lead time: 30–45 days
Flexible scheduling available for large commercial projects

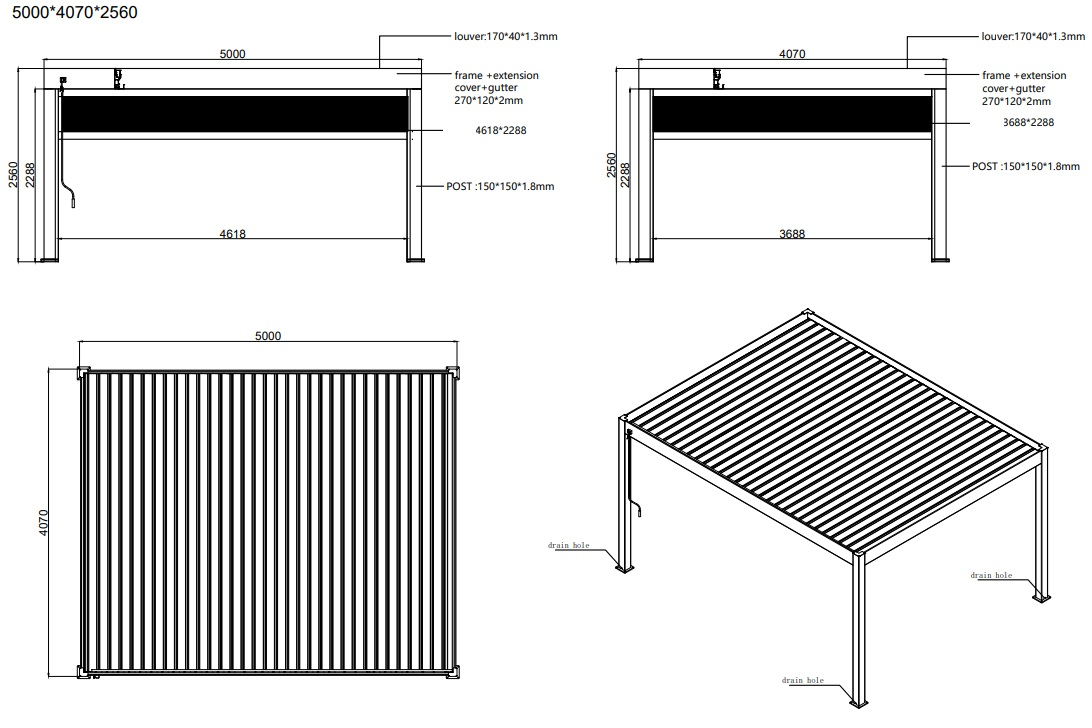

| Specification | Details |
|---|---|
| Frame Material | Extra-Gauge Aluminium |
| Finish | Powder-Coated Dark Grey |
| Size | 16.4 ft x 13.1 ft (5 m x 4 m) |
| Roof Type | Bioclimatic Double-Layer Louvred System |
| Operation | Manual Adjustment |
| Drainage System | Integrated Hidden Channels |
| Waterproof | Yes (when roof is closed) |
| Structural Design | 4-Leg Wide-Span System |
| Application | Commercial / Hospitality Projects |
| MOQ | 5 Sets |
| Production Lead Time | 30–45 Days |
| Warranty | 10-Year Limited Structural Warranty* |
OEM & Project-Based Solutions Available
For wholesalers, contractors, and developers, we offer:
Custom frame colours
Size & dimension modifications
Private label branding
Logo printing or marking
Custom packaging solutions
Engineering drawings & technical support
We welcome long-term distribution partnerships.
Professional Outdoor Structure Supply Partner
Direct factory manufacturing
Competitive wholesale pricing
Strong export experience
Strict quality control systems
Engineering-driven product design
Dedicated project coordination support
We focus on long-term B2B partnerships.
Q: Can this pergola span 5 metres with only 4 legs?
Yes. The reinforced frame and extra-thick leg system are specifically engineered for a 5m wide span with four legs.
Q: Is the roof fully waterproof?
Yes. When closed correctly, the bioclimatic louvred roof provides complete rain protection.
Q: Is this suitable for heavy commercial use?
Yes. It is designed for high-frequency hospitality and commercial environments.
Q: Can the pergola be customized for large projects?
Yes. OEM and project-based customization is fully supported.
Contact our project team to receive a wholesale quotation, container loading plan, and full product catalogue.
Email: lisa@Wellfurnir.com
Call: +86 139 8986 6914
The Thor Deluxe 5m x 4m Aluminium Pergola, exclusive to Crownhill, is an engineering marvel that spans a full 5-metre width using only four legs for a wide, unobstructed view. This ultra-heavy-duty model features massive 15cm extra-thick legs and a reinforced, thick-gauge aluminium frame. Its extra-strength roof louvres maintain a seamless 4m span without a split roof, while extra-depth beams completely conceal the double-layer louvres when open. Featuring a 90-degree tilt function, 100% waterproof design, and a sophisticated integrated drainage system, this pergola offers unmatched durability and a 10-year limited structural warranty.
Contact us for pricing, lead times, and to discuss your specific requirements.
