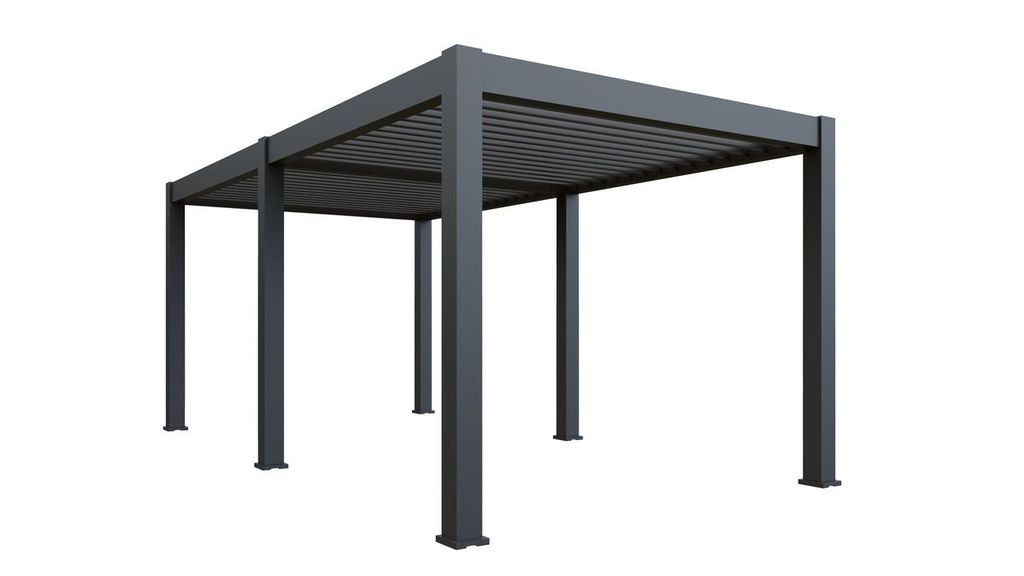

The Thor 6m x 3m Aluminium Pergola, exclusive to Crownhill, is an expansive outdoor shelter featuring a 100% waterproof roof and a sophisticated integrated drainage system. Its tilting double-layer louvres include a 90-degree turn function, allowing you to follow the sun’s path or create instant rain protection. Designed for long-term durability, the system directs rainwater seamlessly through the internal framework and down the hollow legs. Backed by a 5-year structural warranty, this large-scale Thor model offers a versatile, low-maintenance solution for extending your outdoor season in any weather.
✔ Premium aluminium louvred pergola with adjustable double-layer roof
✔ Heavy-duty aluminium construction for commercial-grade durability
✔ Fully waterproof roof system with integrated hidden drainage
✔ UV-resistant powder-coated Dark Grey finish
✔ Over 90° rotating louvres for optimal sun control
✔ OEM / private label & project customization supported
The Modern Aluminum Metal Pergola – 19.7′ x 9.8′ Dark Grey is designed for hospitality venues, commercial terraces, resorts, restaurants, and large outdoor spaces where flexibility, aesthetics, and all-weather protection are essential.
Hotels & Resorts
Rooftop Bars & Restaurants
Outdoor Dining & Lounge Areas
Commercial Courtyards & Terraces
Real Estate Showrooms & Model Villas
Property Development Projects
Furniture Importers & Wholesalers
Commercial-Grade Aluminium Construction
This pergola features a precision-engineered aluminium frame paired with a high-performance adjustable louvred roof system, delivering strength, stability, and long-term outdoor performance.
Reinforced aluminium structure
Powder-coated Dark Grey finish
UV-resistant and weather-protected coating
Extra-strong beams for large-span coverage
High structural stability for commercial use
Heavy-duty base plates with bolt-down fixing system
Adjustable Double-Layer Louvred Roof
The roof system is designed to provide complete control over sunlight, shade, and rain protection.
Tilting double-layer aluminium louvres
Manual operation for precise adjustment
Over 90-degree rotation to follow sun movement
Fully waterproof when closed correctly
Seamless transition between open-air and sheltered modes
Advanced Hidden Water Management
The pergola incorporates a sophisticated internal drainage system, allowing rainwater to be managed discreetly without visible runoff.
Rainwater collected via U-shaped louvre channels
Water directed into internal roof framework
Flows through horizontal beams into hollow pergola legs
Discharges vertically to ground level
Prevents dripping when opening wet louvres
This system ensures a clean, dry space even during sudden rainfall.
Designed to Extend Outdoor Usability
Allows outdoor areas to be used in changing weather
Protects furniture and flooring from rainwater
Maintains clean architectural aesthetics
Ideal for high-traffic commercial environments
Enhance Your Outdoor Space
Compatible with a range of optional accessories to increase comfort, privacy, and functionality:
Pull-down privacy screens
Aluminium louvred side walls
Glass sliding door systems
Accessories can be configured to meet project-specific requirements.
Professional Installation Ready
Requires 2–3 people for safe assembly
Estimated installation time: 2–3 hours
Expansion bolts supplied as standard
Must be installed on flat, solid surfaces (concrete or patio)
All pergola legs must be securely bolted through base plates
Reliable Manufacturing for Bulk & Project Orders
Wellfurnir® operates as a professional aluminium pergola manufacturer with scalable production capabilities.
We support:
Container-based bulk shipments
Project-based mass production
Mixed model loading
Custom packaging solutions
Export documentation support
Standard production lead time: 30–45 days
Flexible scheduling available for large projects
| Specification | Details |
|---|---|
| Frame Material | Aluminium |
| Finish | Powder-Coated Dark Grey |

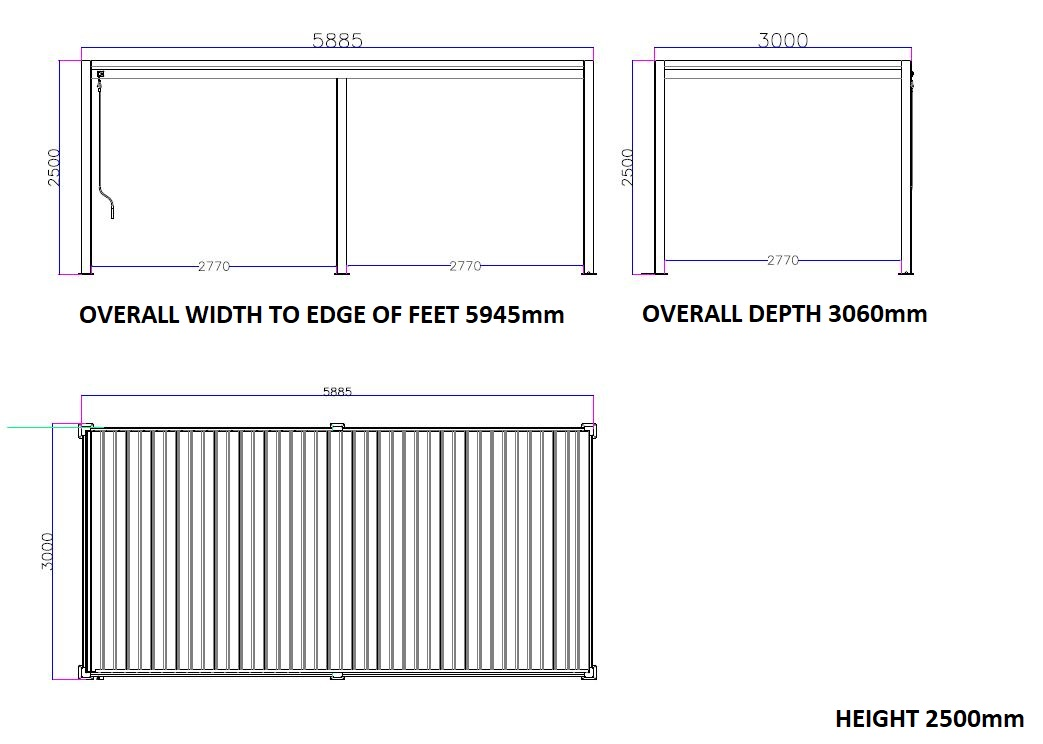

| Width | 19.7 ft (6 m) |
| Depth | 9.8 ft (3 m) |
| Roof Type | Adjustable Double-Layer Louvred System |
| Operation | Manual Adjustment |
| Drainage System | Integrated Hidden Channels |
| Waterproof | Yes (when roof is closed) |
| Application | Commercial / Hospitality Projects |
| MOQ | 5 Sets |
| Production Lead Time | 30–45 Days |
| Warranty | 5-Year Structural Warranty |
OEM & Project-Based Solutions Available
For wholesalers, contractors, and developers, we offer:
Custom frame colours
Size & dimension modifications
Private label branding
Logo printing or marking
Custom packaging solutions
Engineering drawings & technical support
We welcome long-term distribution partnerships.
Professional Outdoor Structure Supply Partner
Direct factory manufacturing
Competitive wholesale pricing
Strong export experience
Strict quality control systems
Engineering-driven product design
Dedicated project coordination support
We focus on long-term B2B partnerships.
Q: Is this pergola suitable for commercial use?
Yes. It is designed for high-frequency commercial and hospitality environments.
Q: Is the roof fully waterproof?
Yes. When closed correctly, the louvred roof provides full rain protection.
Q: Can the pergola be customized for large projects?
Yes. OEM and project-based customization is fully supported.
Q: Does installation require professionals?
Professional installation is recommended for commercial projects.
Contact our project team to receive a wholesale quotation, container loading plan, and full product catalogue.
Email: lisa@Wellfurnir.com
Call: +86 139 8986 6914
The Thor 6m x 3m Aluminium Pergola, exclusive to Crownhill, is an expansive outdoor shelter featuring a 100% waterproof roof and a sophisticated integrated drainage system. Its tilting double-layer louvres include a 90-degree turn function, allowing you to follow the sun’s path or create instant rain protection. Designed for long-term durability, the system directs rainwater seamlessly through the internal framework and down the hollow legs. Backed by a 5-year structural warranty, this large-scale Thor model offers a versatile, low-maintenance solution for extending your outdoor season in any weather.
Contact us for pricing, lead times, and to discuss your specific requirements.
