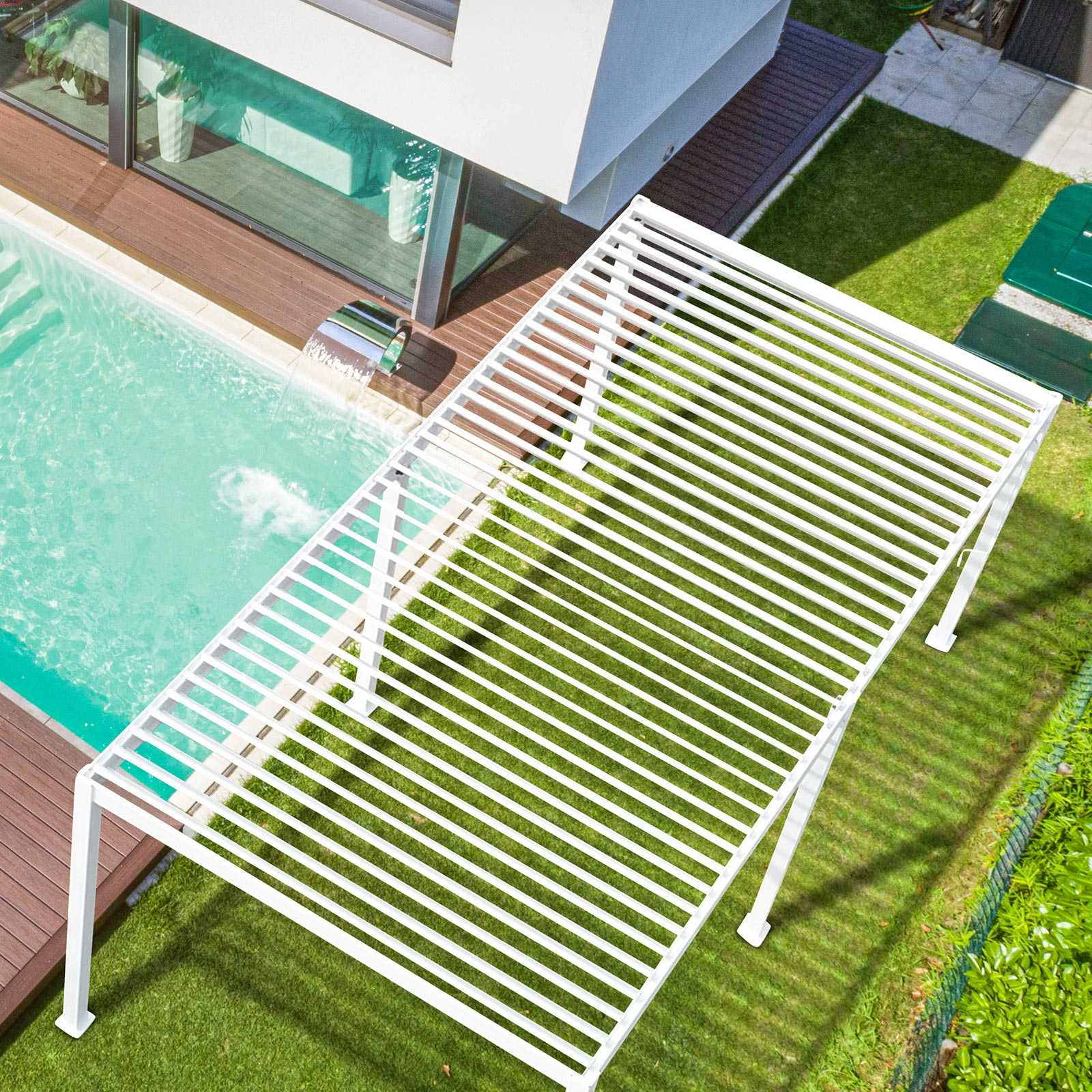

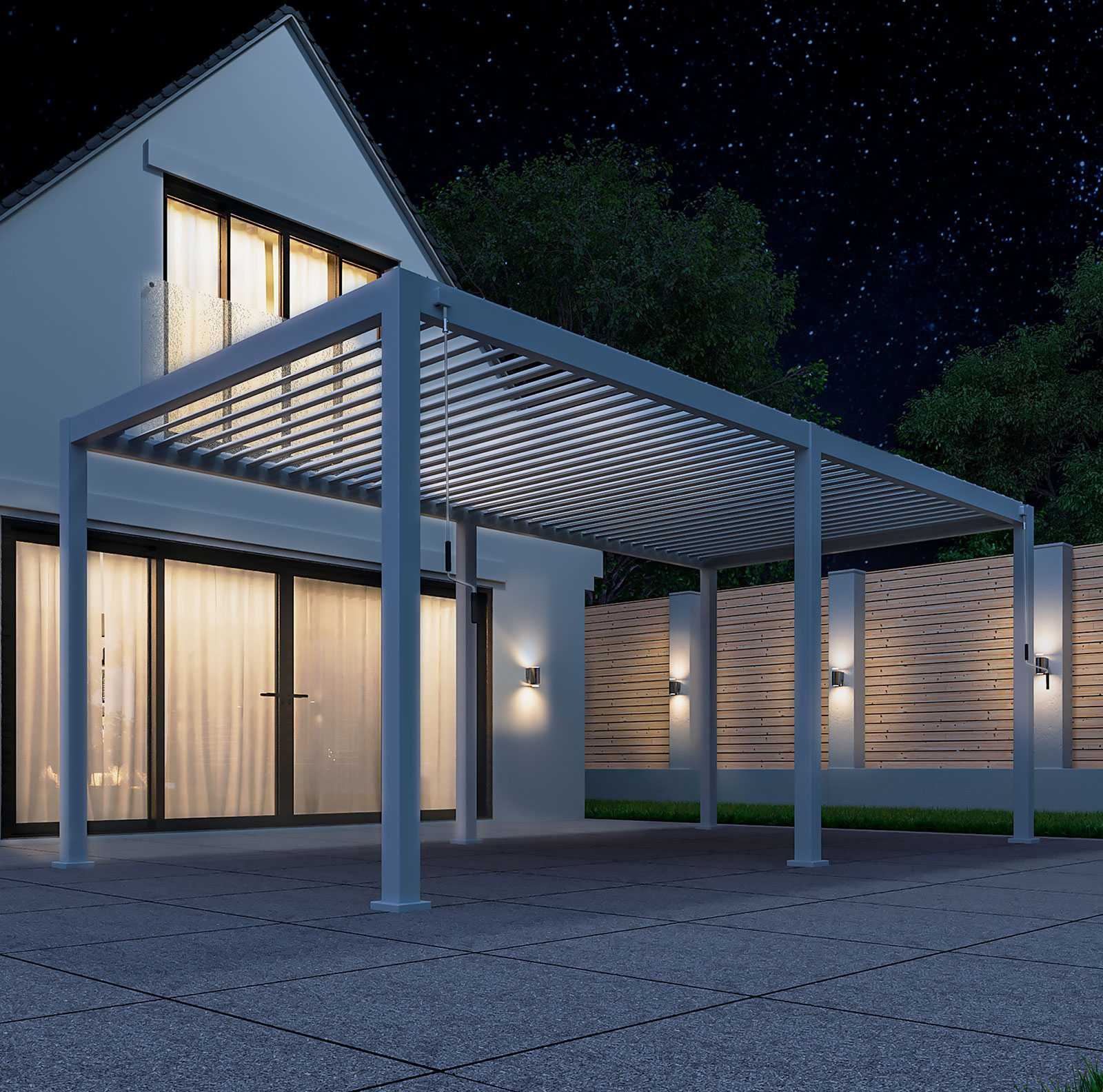

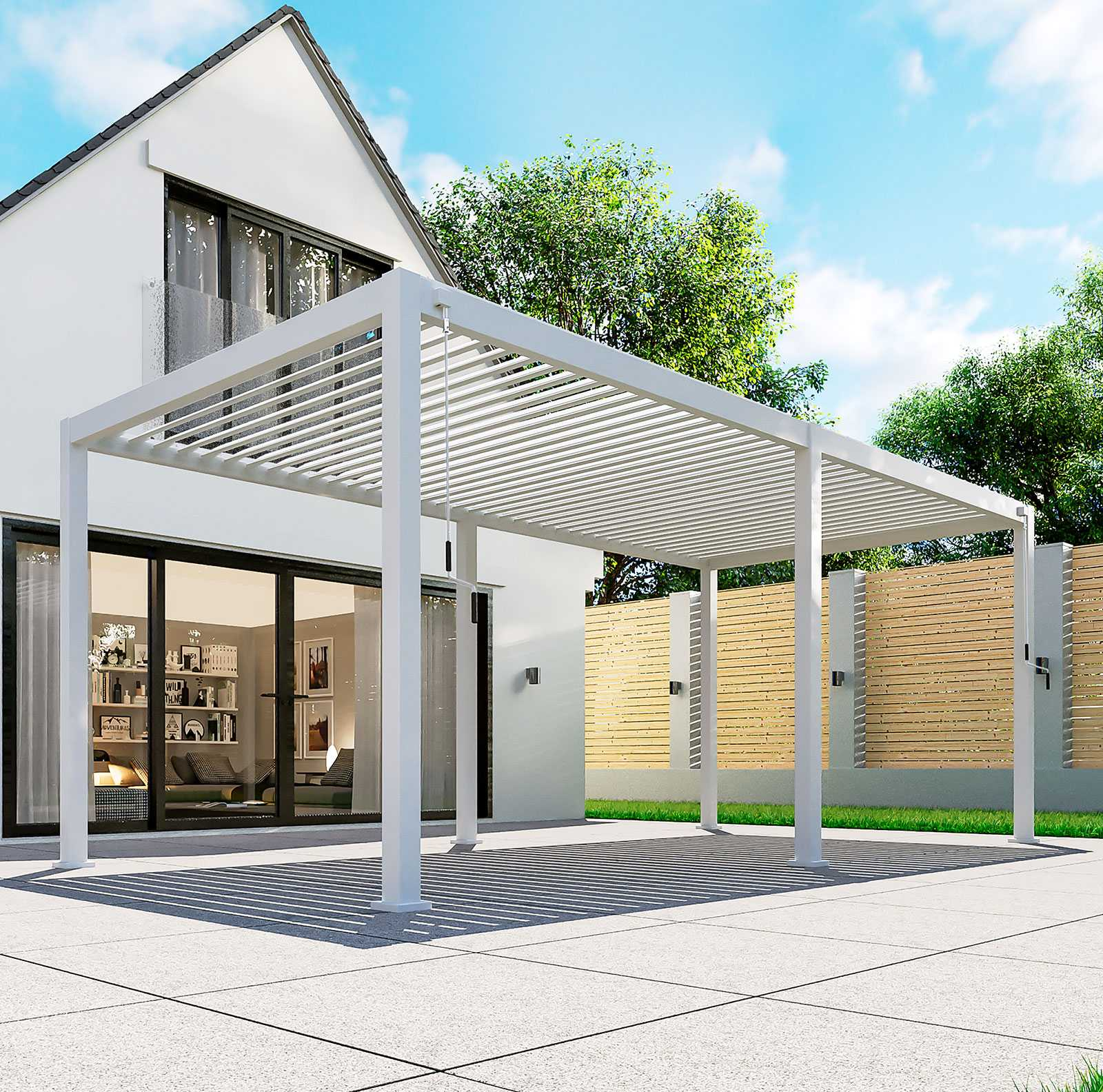

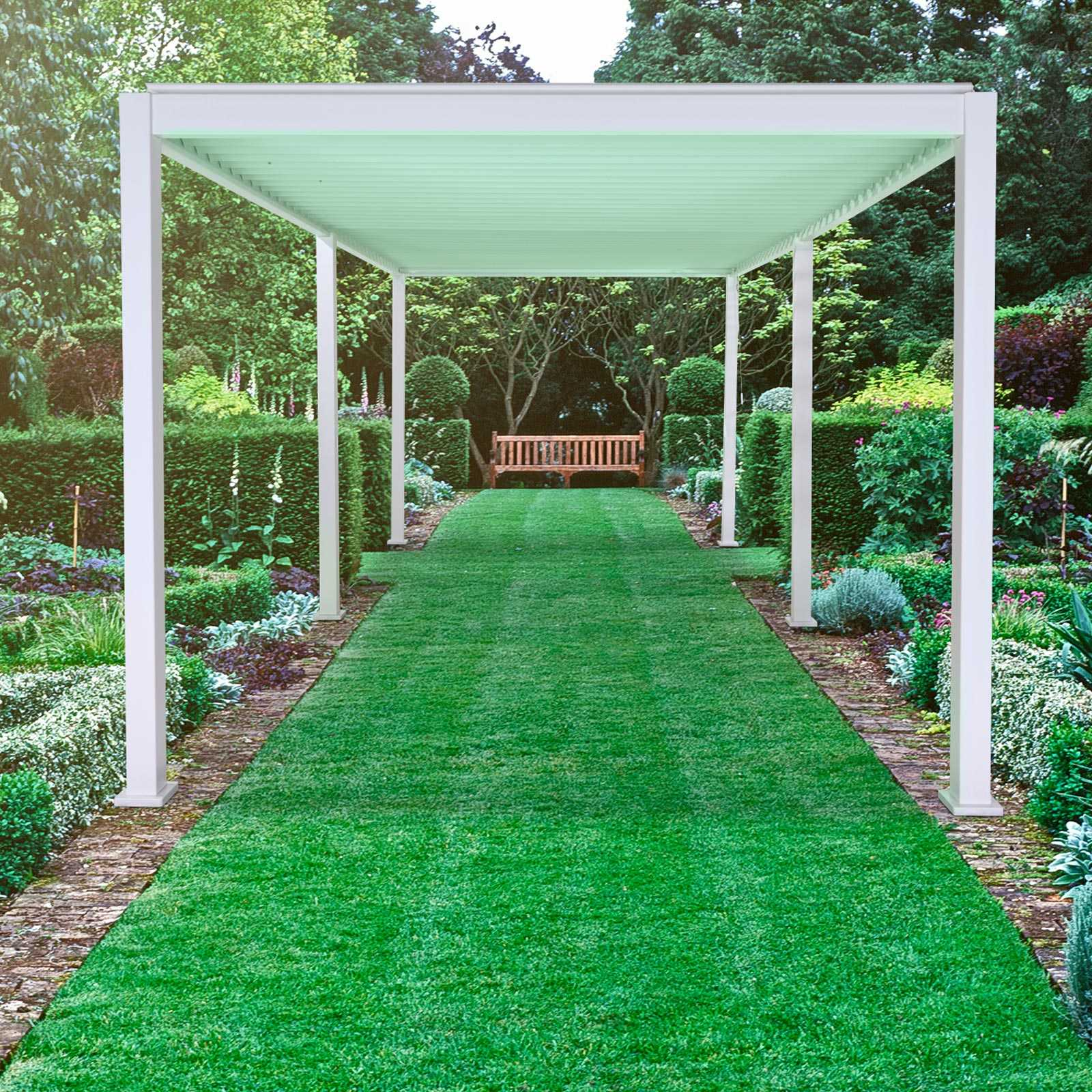

The Titan 6m x 3m Rectangular Aluminium Pergola in White is an award-winning (Red-Dot) outdoor solution designed to provide an expansive, stylish, and highly durable covered area. Constructed from UV-protected aluminium with a premium TIGER Drylac powder coating, this 100% waterproof structure is built to withstand the elements with virtually no maintenance. The tilting double-layer louvres offer flexible control between shade and sunlight, while a genius integrated drainage system directs rainwater through the framework and down the hollow legs. Featuring a 2022+ updated design that allows for privacy screens on all six sides, this pergola (RAL 9016) is a high-performance extension for any large patio or terrace.
✔ Premium aluminum pergola with modern adjustable louvred roof system
✔ Fully waterproof design (when roof is closed correctly)
✔ Double-layer tilting louvre technology for flexible weather control
✔ UV-protected structure for long-term outdoor durability
✔ Premium TIGER Drylac powder-coated white finish (RAL 9016)
✔ Award-winning Red Dot inspired architectural design
✔ OEM / private label customization supported
The Modern 6m x 3m (19.7′ x 9.8′) Aluminum Pergola – White is designed for hotels, resorts, restaurants, and large-scale outdoor hospitality environments requiring a premium, elegant, and high-performance covered space solution.
Its clean white architectural finish enhances outdoor aesthetics while providing full functional protection. The system enables smooth transitions between open-air sunlight exposure and fully enclosed waterproof shelter, ensuring year-round usability even in unpredictable weather conditions.
Premium Aluminum Construction
Manufactured entirely from high-grade aluminum, this pergola is engineered for strength, corrosion resistance, and long-term low maintenance in demanding outdoor environments.
The structure is finished with TIGER Drylac powder coating, offering superior durability and weather resistance compared to standard coatings.

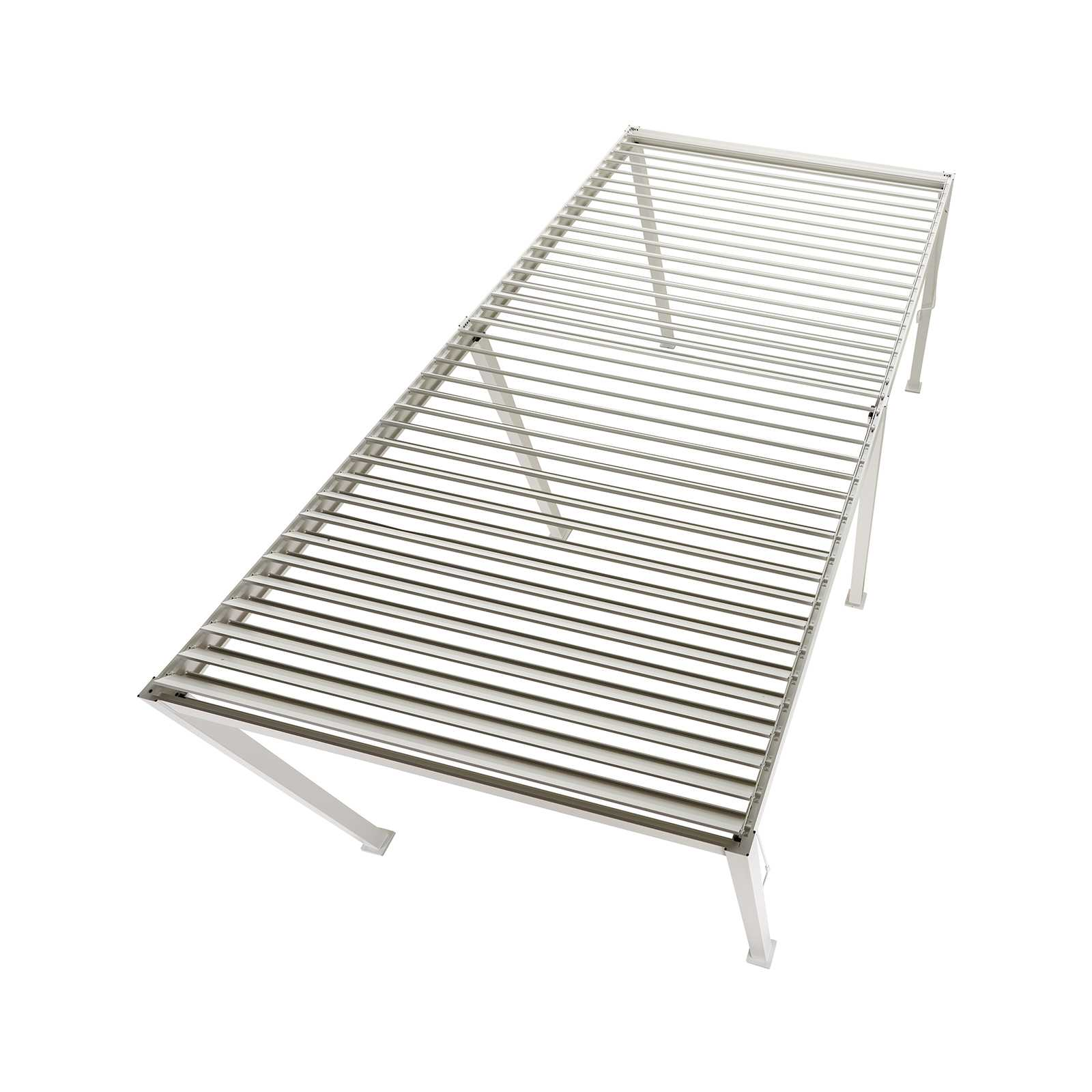

Double-Layer Adjustable Louvred Roof
The advanced louvre system allows precise control over sunlight, ventilation, and rain protection, maximizing outdoor usability.
Hidden & Efficient Water Management
A fully integrated drainage system ensures rainwater is efficiently managed without visible runoff or dripping.
This ensures a clean, dry, and uninterrupted outdoor environment.
All-Weather Hospitality Comfort
Designed to extend outdoor usage across all seasons.
Modular Outdoor Expansion Options
Optional accessories can enhance privacy and functionality:
(Accessories sold separately)
Professional Installation Ready
Reliable Manufacturing for Commercial Projects
Wellfurnir® operates as a professional outdoor structure manufacturer with strong global export capability.
We support:
Standard lead time: 30–45 days
Flexible production scheduling available

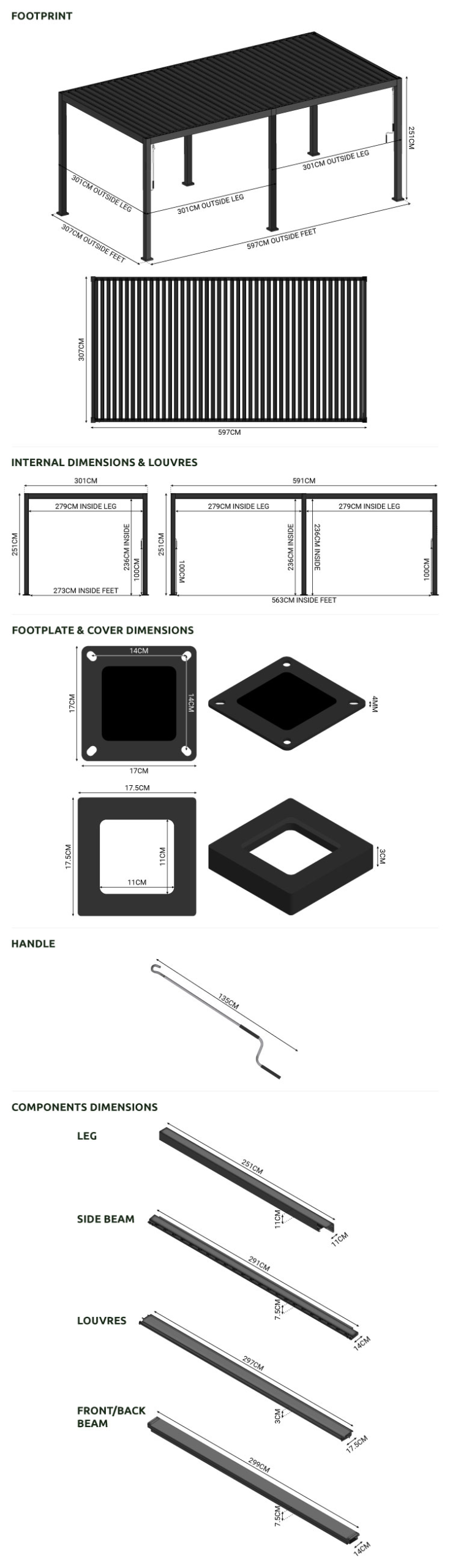

| Specification | Details |
|---|---|
| Frame Material | Aluminum |
| Finish | TIGER Drylac Powder-Coated White (RAL 9016) |
| Size | 6m x 3m (19.7′ x 9.8′) |
| Roof Type | Double-Layer Adjustable Louvred System |
| Louvre Operation | Manual |
| Waterproof Rating | 100% Waterproof (when closed correctly) |
| UV Protection | Yes |
| Drainage System | Integrated Hidden Channels |
| Weight | 261kg |
| Application | Hospitality / Residential / Commercial Projects |
| Build Time | Approx. 2 Hours |
| Assembly Requirement | 2–3 People |
| Warranty | 5-Year Structural Warranty |
| OEM Customization | Supported |
OEM & Project-Based Custom Solutions
For hospitality developers, wholesalers, and contractors:
We support long-term B2B partnerships globally.
Professional Outdoor Structure Supply Partner
Q: Is this pergola fully waterproof?
Yes. When the louvres are closed correctly, it provides complete waterproof protection.
Q: Does it require planning permission?
Generally no, but users should confirm with local planning authorities if unsure.
Q: Can rainwater drain without opening the roof?
Yes. The integrated drainage system functions even when the roof remains closed.
Q: Can accessories be added later?
Yes, but some accessories may require drilling for secure installation.
Contact our project team to receive a wholesale quotation, container loading plan, and full product catalog.
Email: lisa@Wellfurnir.com
Call: +8613989866914
The Titan 6m x 3m Rectangular Aluminium Pergola in White is an award-winning (Red-Dot) outdoor solution designed to provide an expansive, stylish, and highly durable covered area. Constructed from UV-protected aluminium with a premium TIGER Drylac powder coating, this 100% waterproof structure is built to withstand the elements with virtually no maintenance. The tilting double-layer louvres offer flexible control between shade and sunlight, while a genius integrated drainage system directs rainwater through the framework and down the hollow legs. Featuring a 2022+ updated design that allows for privacy screens on all six sides, this pergola (RAL 9016) is a high-performance extension for any large patio or terrace.
Contact us for pricing, lead times, and to discuss your specific requirements.
